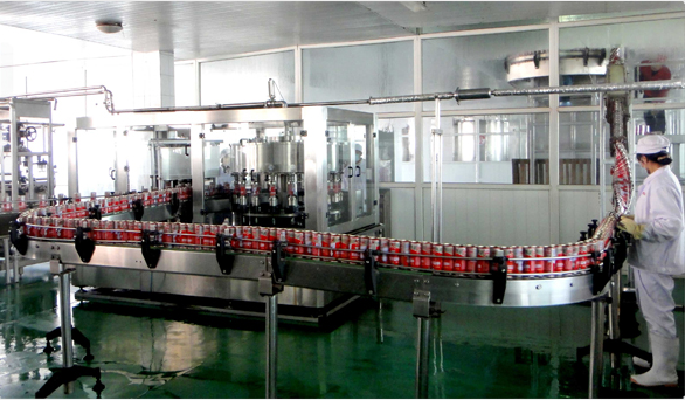

Filling machine is our company introduced German technology, the use of the normal pressure filling principle to design and manufacture, to achieve the liquid filling to the washing of the jar.
Gravity filling principle.
Filling valve with high precision mechanical valve, filling speed, high level of precision.
With perfect CIP cleaning function.
The filling valve with guide and support the bottom of the bottle lifting device combination, to ensure the bottle and filling valve accurate sealing, reducing the material leakage from the tank mouth phenomenon.
According to the height of the tank is different, can be achieved manually lift to meet the filling requirements.
The gear transmission with high efficiency, low noise, long life, easy maintenance, lubrication, using the inverter to control the speed of the machine's main motor speed, this machine adopts stepless frequency control.
The bottle guide system is simple in structure, and can be quickly and conveniently changed according to the tank type.
The whole machine PLC automatic control, fault online display, such as blocking bottles, lack of cover, etc..
With a no can not open the valve, not stamped, cover, and other security features down.
Automatic control of material in the filling cylinder, the level of the liquid level sensor is used to ensure the stability and reliability of the liquid level.
The machine's key components and electrical components are imported products.
Cans Filling Machine Capping parts: cans filling machine
A. will have to cover part of the lid to seal filling product pot, and the conveying chain is sent to the following procedures.
B. sealing tank roller with high hardness alloy steel quenching (HRC>62), sealed tank curve using optical curve grinding precision machining, to ensure the quality of the seal, to ensure the normal operation of the machine.
C. This machine has a can under the cover, no can not cover the control system, to ensure the normal operation of the machine, reduce the rate of cover loss.
D. artificial aluminum cover in the chute by the cover of gravity and thruster under cover, in the chute with detection switch is used to ensure that a lack of cover to stop.
E. according to the different height of the tank type, capping machine can meet the requirements for manual lifting.
The letter cans filling machine technical parameters
Rated output: 8000BPH (335ml)
Tank height: 80 ~ 135mm
Tank size: 45 ~ 70 mm and Phi Phi
For tank type: cans (200, 202, 206, 209 need to change)
Applicable cover type: standard aluminum cover
Filling method: gravity filling
Filling head number: 18
Filling temperature: 0 ~ 92
Filling valve flow rate: >150ml/s
Capping head number: 4
Motor power: 3.75KW
Compressed air consumption: 3/min 0.05m (0.6MPa)
Outline dimension: 3150 * 1730 * 2700mm
